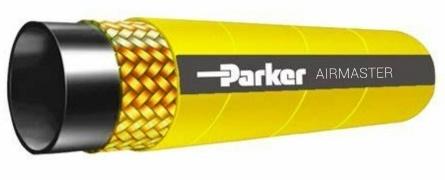

AIRMASTER

TVC Melting Chamber


Application: Recommended for high pressure rock drill & pneumatic service in drilling of quarries, construction & general industry.

Technical Description:

Inner Tube: NBR – Synthetic rubber
Reinforcement: One high tensile steel wire braid
Outer Cover: SBR – Synthetic rubber

Temp. Range: -35°C to +100°C (-31°F to +212°F).

Specifications:

Hose I.D Hose O.D Working Pressure Minimum Bend Radius Approx. Weight
inch mm inch mm psi bar inch mm lbs/ft kg/m
3/4 19.0 25.4 27.7 500 34 9.4 241 0.39 0.58
1 25.4 31.6 35.6 500 34 12.0 305 0.56 0.83
1-1/4 31.8 40.0 43.0 500 34 16.0 419 0.81 1.20
1-1/2 38.1 46.4 50.4 500 34 20.0 508 1.01 1.50
2 50.8 59.5 63.5 500 34 25.0 635 1.30 1.94
2-1/2 63.5 73.0 79.5 500 34 30.0 762 - -
3 78.2 86.4 94.5 500 34 36.0 915 2.90 4.33
